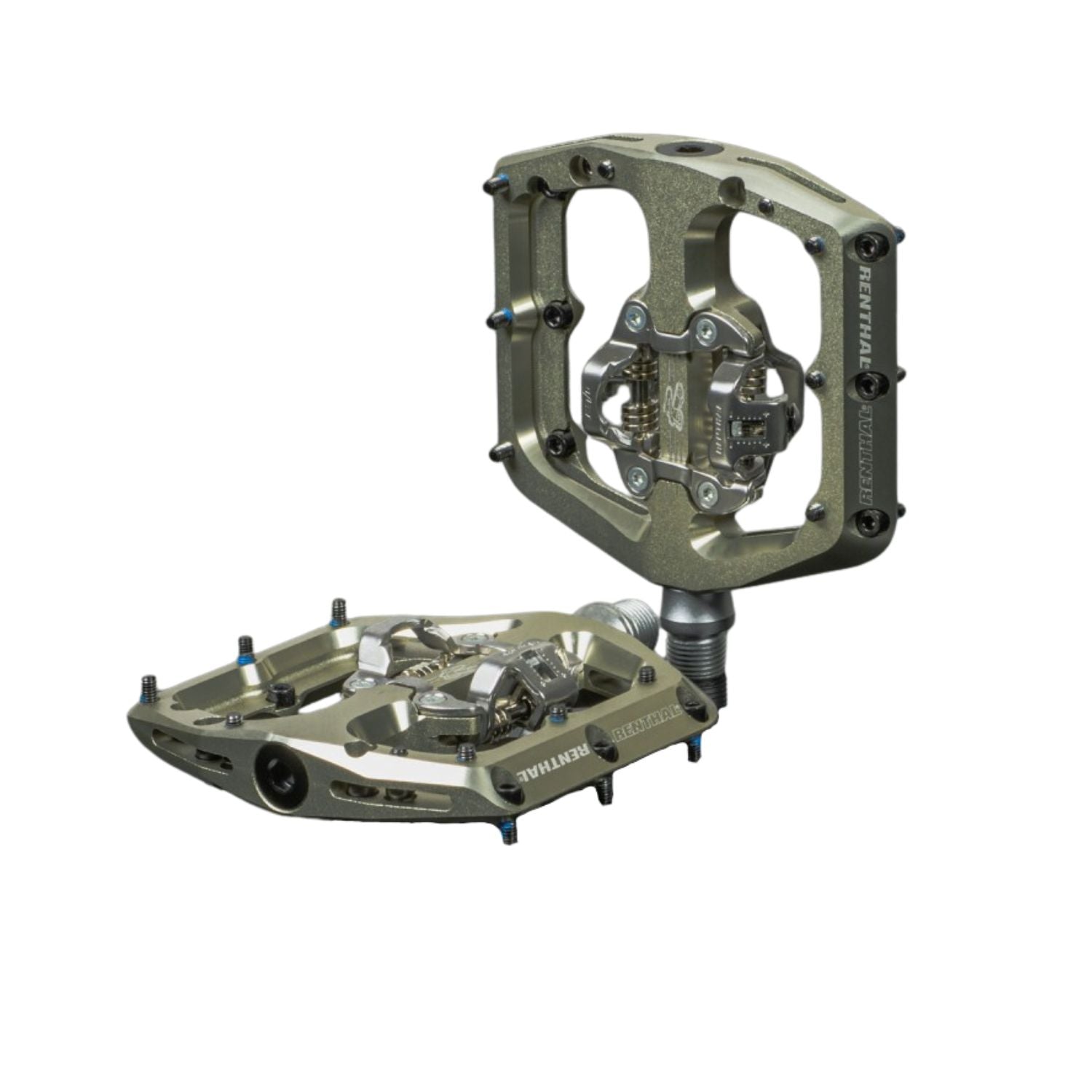

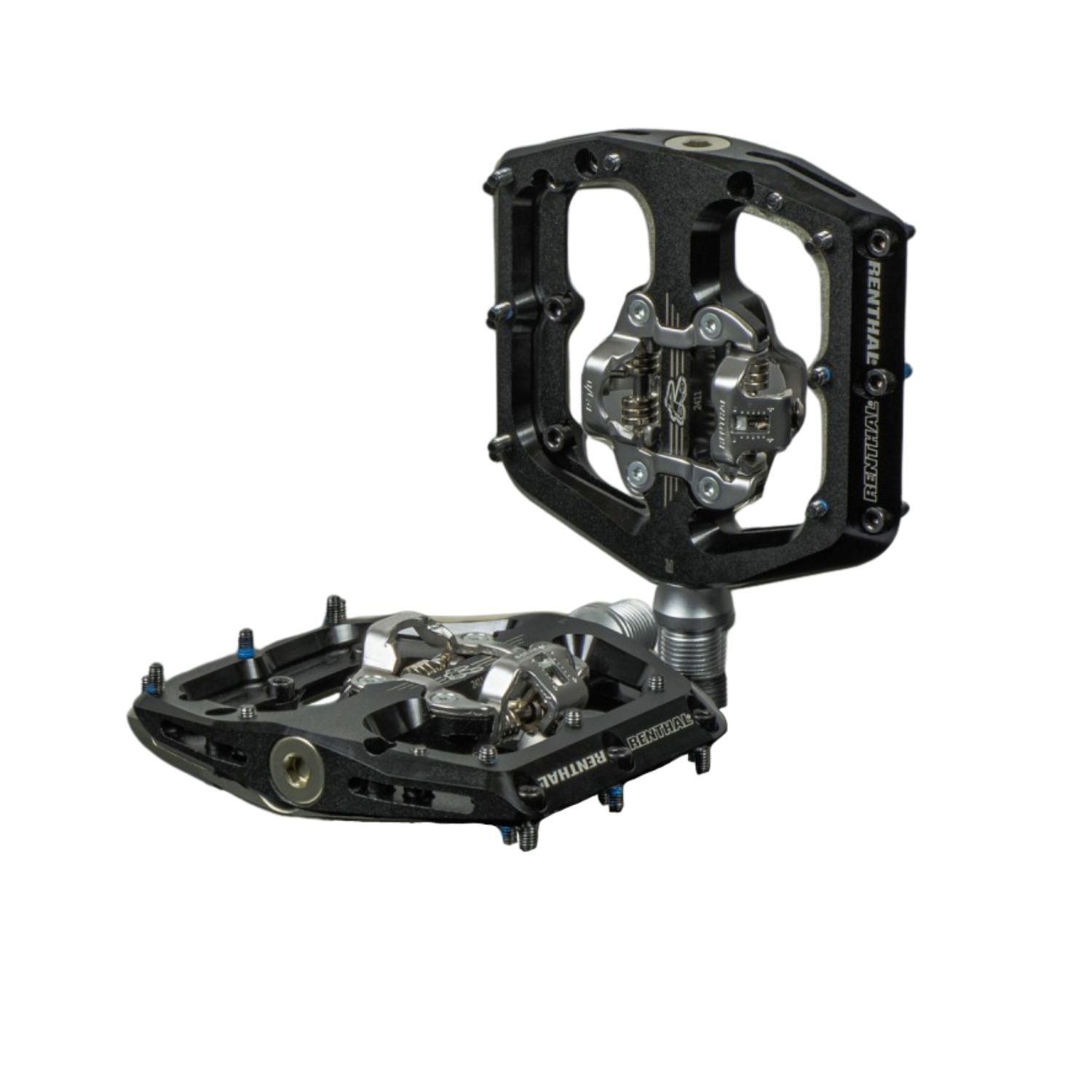

Renthal Revo-DHC Downhill Clip Pedals

The Renthal Revo-DHC is what happens when a flat pedal and a clip pedal have a very fast, very rowdy kid. Renthal took the oversized silhouette of their proven Revo-F flat pedal, added an SPD-compatible binding, and built something that genuinely delivers the planted, confidence-inspiring support of a flat with the locked-in security and pedaling efficiency of a clipless system. The massive 104 x 111mm CNC-machined 6061 aluminum platform gives your foot a huge landing zone to aim for when clipping back in on the rowdiest terrain, and the smooth front face is designed to slide over rocks rather than snag on them.

Renthal's proprietary binding uses easy-entry geometry that moves the rear jaw down and away from the cleat on engagement, meaning less force needed to clip in without sacrificing retention. Eight adjustable pins per side dial in from 1.5mm to 5.5mm in 1mm increments, so you can fine-tune grip for your shoe of choice without having the pins interfere with clip-in or release. It's SPD-compatible and ships with Renthal's own cleats, so setup is dead simple.

Under the hood, three outboard cartridge bearings sit at the outer edge of the pedal where they're best protected from rock strikes, backed up by an inboard Igus bush sealed with a full-contact wiper seal and O-ring-sealed end cap. The patent-pending axle design doubles as a bushing removal and installation tool, meaning full home servicing with nothing more exotic than hex keys and a mallet. These pedals are built to take a beating and be back in service fast.

Why You'll Like It

For the downhill ripper / park rat, i want to be locked in when it counts but still feel like I'm on a flat when things get sketchy and I need to bail. The Revo-DHC gives me that massive platform underfoot so even when I miss the clip after a dab, my foot isn't going anywhere scary. Plus, being able to tune the pin height and spring tension means I can set these up exactly how I like for every condition.

Key Features

• Extra-large 104 x 111mm forged and CNC-machined 6061 aluminum platform for flat-pedal-level support
• Proprietary SPD-compatible binding with easy-entry geometry and a wide spring tension adjustment range
• 8 adjustable pins per side with 1.5mm to 5.5mm height adjustment in 1mm increments for tunable grip
• Triple outboard cartridge bearings plus inboard Igus bush, sealed for durability against rock strikes and mud
• Patent-pending easy-service axle system allows full home rebuilds with standard hex keys and a mallet
